12V120Ah Valve Regulated Lead Acid Battery

Get a Price/Quote

12V120Ah Valve Regulated Lead Acid Battery Specification

Life Span
10 years for floating

Working Temperature
-15~50 Celsius (oC)

Lower Self Discharge
3 months, remaining 91% capacity

Maintenance Type
Free

Material
99.99% pure lead, sulfuric acid, ABS container

Usage
Electric Power, Wind Generator, Vacuum Cleaner, UPS, Electric Equipment, Solar System, Medical Equipment

Capacity
200Ah

Nominal Capacity
120 Ampere-hour (Ah)

Terminal
Copper

Sealed Type
Sealed

Voltage
12 Volt (v)

Rated Capacity
120Ah

Dimension (L*W*H)
409*176*225*225 Millimeter (mm)

Weight
36 Kilograms (kg)

Color
Black, Grey, or Customized

Warranty
2 Years

About 12V120Ah Valve Regulated Lead Acid Battery

We are considered as the leading manufacturer and supplier of 12V120Ah Valve Regulated Lead Acid Battery. These batteries are manufactured under stringent quality control measures. They batteries are known for their long lasting and efficient performance. Moreover, our batteries are widely demanded across the market, as these can withstand extreme temperature also. Our offered range of 12V120Ah Valve Regulated Lead Acid Battery is considered ideal for various systems.

Capacity range: 33Ah-3000Ah (25C)
Voltage range: 2V/6V/12V
Number of cycles (25 degrees C)
30% discharge depth: 1500 times (12V6V) 1800 times (2V)
50% discharge depth: 700 times (12V6V) 850 times (2V)
100% discharge depth: 350 times (12V6V) 360 times (2V)
The battery is suitable for shallow discharge cycles
Low self-discharge rate: (25 degrees C) less than 2% per month
Long design life: (25 degrees C),
Floating life: 12v 10 years
2v/6v 15 years
The applicable environment range: -15 to 50 degrees C
Operating temperature range: -20 to 50 degrees C
Recommended operating temperature: 25 degrees C

Specification

Battery model	Voltage (V)	Capacity (Ah)	Internal resistance (m)	Form factor (mm)				Terminal type	Terminal position	Weight A 3% (kg)
Battery model	Voltage (V)	Capacity (Ah)	Internal resistance (m)	Length A 2	Width A2	High A2	Total height A2	Terminal type	Terminal position	Weight A 3% (kg)
NPD6-100Ah	6	100	2.8	194	170	205	210	T14	A	16
NPD6-150Ah	6	150	2.3	260	180	245	250	T16	B	25.5
NPD6-180Ah	6	180	2	306	169	220	225	T16	B
NPD6-200Ah	6	200	1.8	322	178	227	230	T16	A	30.5
NPD12-33Ah	12	33	9	195	130	155	167/180	T14/T6	C	11
NPD12-38Ah(T)	12	38	9	197	165	170	170	T16A	D	12.4
NPD12-38Ah(S)	12	38	9	197	165	174	174	T14	D	12.4
NPD12-40Ah	12	40	8	197	165	170	170	T14	D	13.5
NPD12-50Ah	12	50	6.5	230	138	211	215	T14	C	17.3
NPD12-65Ah	12	65	6.5	350	166	179	179	T14	C	21
NPD12-70Ah	12	70	5.5	260	169	211	215	T14	C	24
NPD12-75Ah	12	75	5.5	260	169	211	215	T14	C	24.5
NPD12-80Ah	12	80	5	260	169	211	215	T14	C	25.3
NPD12-90Ah	12	90	5	306	169	211	215	T14	C	28.5
NPD12-100Ah	12	100	4.5	330	171	214	220	T16	C	29.3
NPD12-100Ah(T)	12	100	5	407	173	208	238	T16/T9	C	31.5
NPD12-100Ah(S)	12	100	5	407	173	208	233	T9	C	31.5
NPD12-120Ah(T)	12	120	4.3	407	173	208	238	T16/T9	C	35.5
NPD12-120Ah(S)	12	120	4.3	407	173	208	233	T9	C	35.5
NPD12-120Ah	12	120	4	409	176	225	225	T16	C	36
NPD12-150Ah	12	150	3.5	485	172	240	240	T16	C	44.5
NPD12-200Ah	12	200	3	522	238	218	222	T16	E	62.5
NPD12-250Ah	12	250	2.6	521	269	220	224	T16	E	75.5
NPD2-200Ah	2	200	0.9	171	111	330	364	T20	G	14
NPD2-300Ah	2	300	0.75	171	151	330	364	T20	G	19.5
NPD2-400Ah	2	400	0.6	210	176	330	367	T20	H	27
NPD2-500Ah	2	500	0.5	241	171	330	365	T20	H	31.5
NPD2-600Ah	2	600	0.45	302	175	330	367	T20	H	38
NPD2-800Ah	2	800	0.35	410	175	330	367	T20	J	53

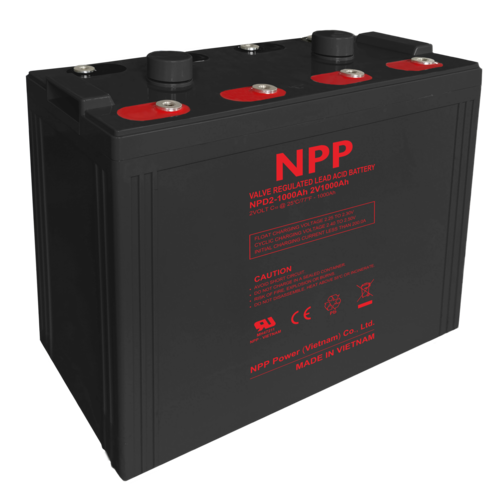

NPD2-1000Ah	2	1000	0.28	475	175	330	367	T20	J	63
NPD2-1500Ah	2	1500	0.2	400	350	345	382	T20	K	96.5
NPD2-2000Ah	2	2000	0.17	490	350	345	382	T20	L	131
NPD2-3000Ah	2	3000	0.11	710	350	345	382	T20	L	188

Exceptional Performance and Reliability

Built for demanding environments, this 12V120Ah battery utilizes pure lead plates and sealed construction to guarantee lasting performance. Its robust ABS casing and copper terminals withstand challenging conditions, while its low self-discharge rate assures reliable power availability even after extended periods. Ideal for backup systems, renewable energy, and specialized equipment.

Versatile Applications Across Industries

Compatible with electric power systems, wind generators, solar installations, vacuum cleaners, UPS units, and medical devices, this battery offers flexibility and dependable energy storage. Its maintenance-free design reduces operational hassle, making it a favored choice for both commercial and industrial uses.

Longevity and Peace of Mind

With a projected floating service life of up to 10 years and a comprehensive two-year warranty, this lead acid battery delivers both durability and value. Its maintenance-free architecture and high resistance to temperature fluctuations ensure consistent performance throughout its lifespan.

FAQ's of 12V120Ah Valve Regulated Lead Acid Battery:

Q: How do I properly install and use the 12V120Ah Valve Regulated Lead Acid Battery?

A: Ensure the battery is placed on a stable, flat surface in a well-ventilated area. Connect the copper terminals securely to your device or system, observing the correct polarity. The sealed, maintenance-free design means you don't need to add water or service internal components.

Q: What types of equipment are compatible with this battery model?

A: This battery is suitable for electric power storage, wind and solar power systems, UPS units, electric equipment, vacuum cleaners, and various types of medical equipment, making it highly versatile for both industrial and residential needs.

Q: When should I recharge the battery to maintain optimal capacity?

A: Recharge the battery after significant use or if its charge has dropped below recommended levels. Even with a low self-discharge rate, it is suggested to top up the charge every three months to ensure it retains its 91% capacity over that period.

Q: Where is this battery typically manufactured and supplied from?

A: This 12V120Ah lead-acid battery is produced and exported by manufacturers and suppliers based in China, catering to a global market as an exporter, manufacturer, producer, trader, and supplier.

Q: What is the process for maintaining this battery?

A: No routine maintenance is needed for this valve regulated, sealed battery. Simply keep it clean, ensure there are no loose connections, and avoid overcharging or deep discharging to extend its lifetime.

Q: What are the main benefits of using this lead acid battery?

A: Key benefits include a long floating service life of 10 years, low self-discharge rate, high purity lead for improved performance, and a maintenance-free, sealed design. Its robust ABS container and copper terminals ensure durability and consistent output even in extreme temperatures.
